Project information
- Hydraulics Motors: Orbital Motors
- Model: MGM
- Product Type: LSHT Light Duty
- Product Catalog: Download Catalog

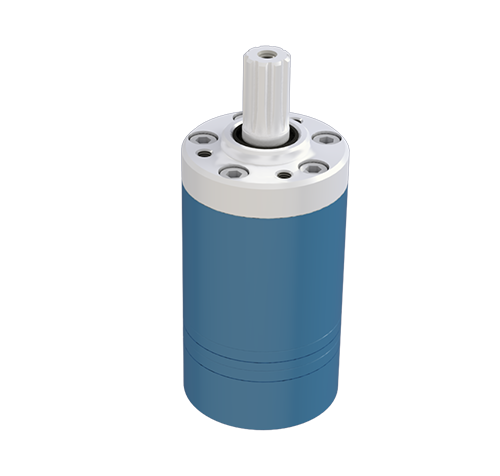

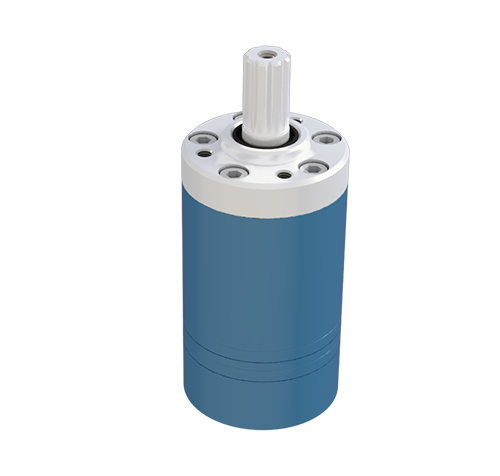

Light Duty Orbital Motor MGM
Orbit motors convert hydraulic energy (pressure, oil flow) into mechanical energy (torque, speed). Hydraulic orbit motors operate on the principle of an internal gear (rotor) rotating within a fixed external gear (stator). The internal gear transmits the torque generated by the application of pressure from hydraulic oil fed into motor which is then delivered via the motor's output shaft. Orbit motors have high starting torque and constant output torque at wide speed range
- Application: Conveyors
Feeding mechanism of robots and manipulators
Metal working machines
Textile machines
Agricultural machines
Food industries
Grass cutting machinery etc.
- Option: Model - Spool valve, gerotor
With or without flange
Side and rear ports
Shafts - straight, splined and tapered
Series with pressure valve(s)
Metric and BSPP ports
Speed sensoring
Other special features
| Code |
Displacement [cm3/rev] |
Max. speed [RPM] |
Max. Torgue [daNm] |
Max. Output [kW] |
Max. Pressure Drop [bar] |
Max. Oil Flow [Ipm] |
|||||
| cont. | int* | cont. | int* | cont. | int* | cont. | int* | cont. | int* | ||
| MGM 8 | 8,2 | 1950 | 2440 | 1,1 | 2,1 | 1,8 | 2,6 | 140 | 200 | 16 | 20 |
| MGM 12,5 | 12,9 | 1550 | 1940 | 1,6 | 2,3 | 2,4 | 3,2 | 140 | 200 | 20 | 25 |
| MGM 20 | 20 | 1000 | 1250 | 2,5 | 3,5 | 2,4 | 3,2 | 140 | 200 | 20 | 25 |
| MGM 32 | 31,8 | 630 | 790 | 4 | 5,7 | 2,4 | 3,2 | 140 | 200 | 20 | 25 |
| MGM 40 | 40 | 500 | 625 | 4,1 | 5,7 | 1,8 | 3 | 110 | 140 | 20 | 25 |
| MGM 50 | 50 | 400 | 500 | 4,5 | 5,8 | 1,7 | 2,1 | 90 | 125 | 20 | 25 |
* Intermitten operation: the permissible values may occur for max. 10% of every minute.
General:| Pressure fluid | Mineral based- HLP(DIN 51524) or HM(ISO 6743/4) | |
| Temperature range, | °C | -40÷140 |
| Optimal Viscosity range, | mm2/s | 20÷75 |
| Filtration | ISO code 20/16 (Min. recommended fluid filtration of 25 micron ) |
