Product information
- Hydraulics Motors: Gear Motor
- Model: PGM
- Product Type: HSLT Medium Duty
- Product Catalog: Download Catalog

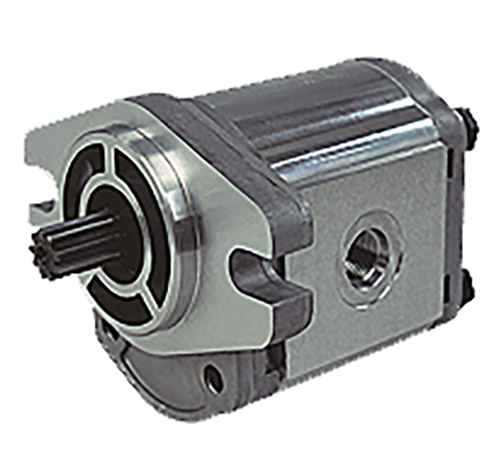

Medium Duty External Gear Motor PGM
Gear motors convert hydraulic energy (pressure, oil flow) into mechanical energy (torque, speed). Gear motors have high speed of rotation and constant output torque at wide speed range
- Application: Open loop circuit
Agricultural machines
Road building machines
Mining machinery
Food industry machines
Special vehicles
- Option: Port options
Shaft options
Flange options
High pressure ports
Valve options
Direction of rotation
- Advantages: Low pulsation
Compact size
Low cost
| Displacement, cm3 /rev [in3 /rev] | 1÷9.8 [0.06÷0.6] |
| Max.Driving Speed, RPM | 3500 (depending from displacement and type) |
| Inlet Pressure bar[PS] | 0.8 [11.6] to 2.2 [32] |
| Fluid | Mineral based- HLP(DIN 51524) or HM(ISO 6743/4) |
| Optimal Viscosity Range, mm2/s [SUS] | 12÷100 [60÷456] |
| Temperature,C [°F] Mineral oil, NBR seal |
-25[-13] ÷ 80[176] |
| Filtration, Contamination class NAS 1638 |
9 |
| Contamination class ISO 4406 | 20/18/15 |
| Achieved with filter | 10 micron |
