Product information
- Pump: Gear Pump
- Model: PGP3
- Product Type: Series 3 - Medium Duty
- Product Catalog: Download Catalog

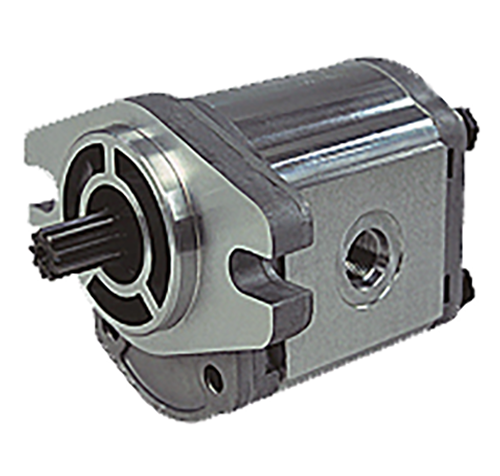

Medium Duty Fixed Gear Pump PGP3
Gear pumps are used in hydraulic drive systems. The gear pump is mechanical source of power that converts mechanical power into hydraulic energy (hydrostatic energy i.e. flow, pressure). It generates flow with enough power to overcome pressure induced by the load at the pump outlet.
- Application: Open loop circuit
Agricultural machines
Road building machines
Mining machinery
Food industry machines
Special vehicles
- Option: Port options
Shaft options
Flange options
High pressure ports
Valve options
Direction of rotation
- Advantages: Low pulsation
Compact size
Low cost
| Displacement, cm3 /rev [in3 /rev] | 20÷60 [1.22÷3.66] |
| Max.Driving Speed, RPM | 3500 (depending from displacement and type) |
| Inlet Pressure,absolute bar[PS] | 0.8 [11.6] to 2.2 [32] |
| Fluid velocity in suction line, m/s[IPS] | 0.5 [0.0127] to 1 [0.0254 ] |
| Fluid | Mineral based- HLP(DIN 51524) or HM(ISO 6743/4) |
| Optimal Viscosity Range, mm2/s [SUS] | 12÷100 [60÷456] |
| Temperature,C [°F] Mineral oil, NBR seal |
-25[-13] ÷ 80[176] |
| Filtration, Contamination class NAS 1638 |
9 |
| Contamination class ISO 4406 | 20/18/15 |
| Achieved with filter | 10 micron |
