Orbital Motors

Project information

  • Hydraulics Motors: Orbital Motors
  • Model: MGV
  • Product Type: LSHT Medium Duty
  • Product Catalog: Download Catalog

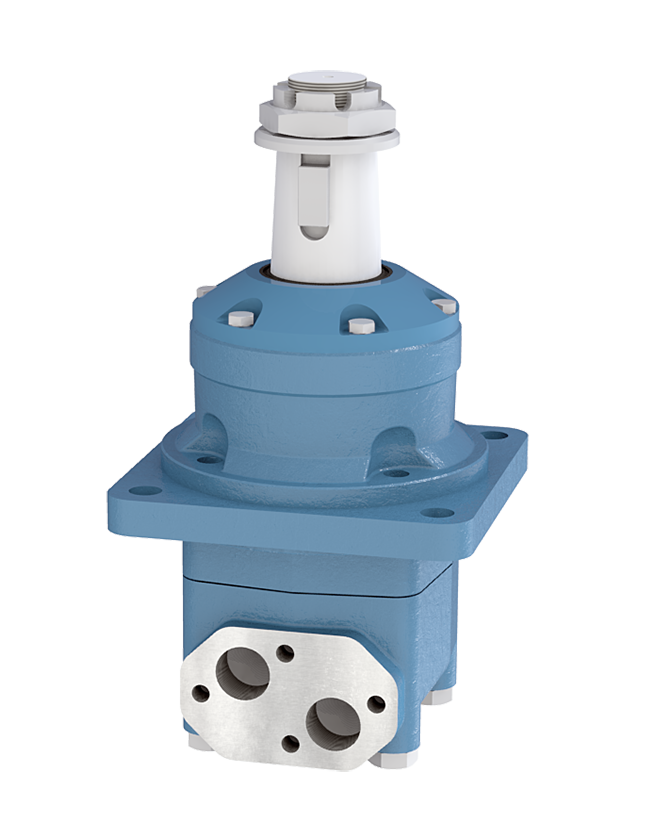

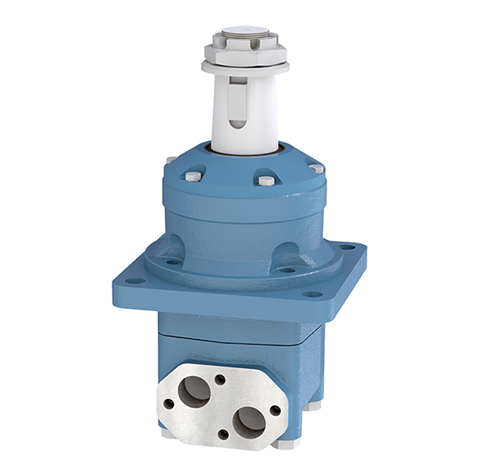

Medium Duty Orbital Motor MGV

Orbit motors convert hydraulic energy (pressure, oil flow) into mechanical energy (torque, speed). Hydraulic orbit motors operate on the principle of an internal gear (rotor) rotating within a fixed external gear (stator). The internal gear transmits the torque generated by the application of pressure from hydraulic oil fed into motor which is then delivered via the motor's output shaft. Orbit motors have high starting torque and constant output torque at wide speed range

  • Application:
    • Conveyors
    Agricultural machines
    Road building machines
    Mining machinery
    Food industries
    Special vehicles
    Plastic abd rubber machinery etc.
  • Option:
    • Model - Disk valve, roll-gerotor
    Flange and wheel mount
    Side and rear ports
    Short motor
    Tacho connection
    Speed sensoring
    Shafts - straight, splined and tappered
    SAE and BSPP ports
    Other special features
Code

Displacement

[cm3/rev]

Max. speed

[RPM]

Max. Torgue

[daNm]

Max. Output

[kW]

Max. Pressure Drop

[bar]

Max. Oil Flow

[Ipm]
cont. int* cont. int* cont. int* cont. int* cont. int*
MGV 315 314,5 510 630 92 111 42,5 51 200 240 160 200
MGV 400 400,9 500 600 118 141 53,5 64 200 240 200 240
MGV 500 499,6 400 480 146 176 53,5 64 200 240 200 240
MGV 630 629,1 320 380 166 194 48 56 180 210 200 240
MGV 800 801,8 350 300 188 211 42,5 48 160 180 200 240



* Intermitten operation: the permissible values may occur for max. 10% of every minute.

General:
Pressure fluid   Mineral based- HLP(DIN 51524) or HM(ISO 6743/4)
Temperature range, °C -40÷140
Optimal Viscosity range, mm2/s  20÷75
Filtration   ISO code 20/16 (Min. recommended fluid filtration of 25 micron )
