Project information
- Hydraulics Motors: Orbital Motors
- Model: MGP
- Product Type: LSHT Light Duty
- Product Catalog: Download Catalog

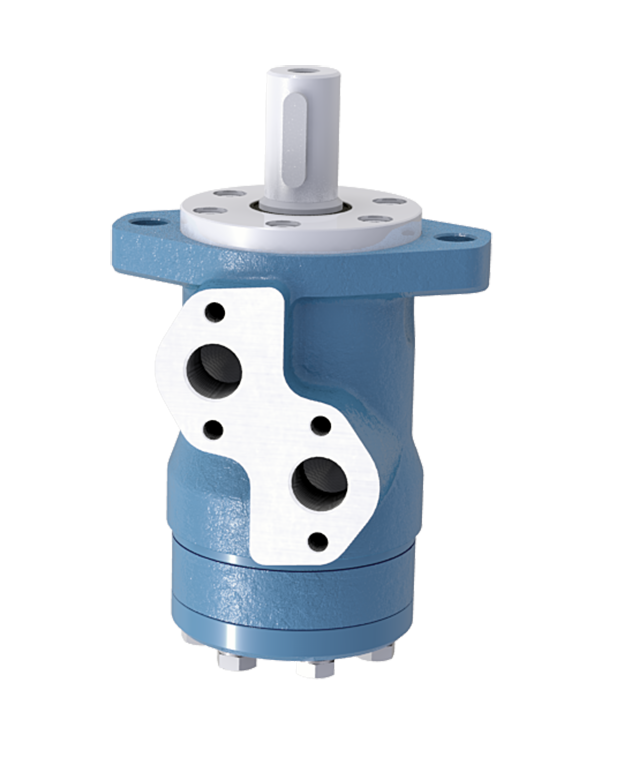

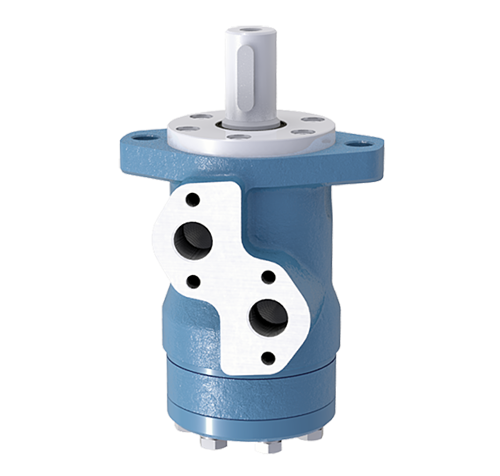

Light Duty Orbital Motor MGP
Orbit motors convert hydraulic energy (pressure, oil flow) into mechanical energy (torque, speed). Hydraulic orbit motors operate on the principle of an internal gear (rotor) rotating within a fixed external gear (stator). The internal gear transmits the torque generated by the application of pressure from hydraulic oil fed into motor which is then delivered via the motor's output shaft. Orbit motors have high starting torque and constant output torque at wide speed range
- Application: Conveyors
Feeding mechanism of robots and manipulators
Metal working machines
Textile machines
Agricultural machines
Food industries
Grass cutting machinery etc.
- Option: Model - Spool valve, gerotor
Flange and wheel mount
Motor with needle bearing
Side and rear ports
Shafts - straight, splined and tapered
Shaft seal for high and low pressure
Metric and BSPP ports
Speed sensoring
Other special features
| Code |
Displacement [cm3/rev] |
Max. speed [RPM] |
Max. Torgue [daNm] |
Max. Output [kW] |
Max. Pressure Drop [bar] |
Max. Oil Flow [Ipm] |
|||||
| cont. | int* | cont. | int* | cont. | int* | cont. | int* | cont. | int* | ||
| MGP 25 | 25 | 1600 | 1815 | 3,3 | 4,7 | 4,5 | 6,1 | 100 | 140 | 40 | 45 |
| MGP 32 | 32 | 1560 | 1720 | 4,3 | 6,1 | 5,8 | 7,8 | 100 | 140 | 50 | 55 |
| MGP 40 | 40 | 1500 | 1750 | 6,2 | 8,2 | 8,4 | 11,6 | 120 | 155 | 60 | 70 |
| MGP 50 | 49,5 | 1210 | 1515 | 9,4 | 11,9 | 10,1 | 12,2 | 140 | 175 | 60 | 75 |
| MGP 80 | 79,2 | 755 | 945 | 15,1 | 19,5 | 10,2 | 12,5 | 140 | 175 | 60 | 75 |
| MGP 100 | 99 | 605 | 755 | 19,3 | 23,7 | 10,5 | 12,8 | 140 | 175 | 60 | 75 |
| MGP 125 | 123,8 | 486 | 605 | 23,7 | 29,8 | 10,2 | 12 | 140 | 175 | 60 | 75 |
| MGP 160 | 158,4 | 378 | 472 | 31,3 | 37,8 | 10,1 | 12,1 | 140 | 175 | 60 | 75 |
| MGP 200 | 198 | 303 | 378 | 36,6 | 45,6 | 10 | 12 | 140 | 175 | 60 | 75 |
| MP 250 | 247,5 | 242 | 303 | 38 | 58,3 | 7,5 | 12 | 110 | 175 | 60 | 75 |
| MGP 315 | 316,8 | 190 | 236 | 38 | 56 | 5,8 | 9 | 90 | 140 | 60 | 75 |
| MGP 400 | 396 | 150 | 189 | 36 | 59 | 4,6 | 7,8 | 70 | 115 | 60 | 75 |
| MGP 500 | 495 | 120 | 150 | 39 | 57 | 3,5 | 7,2 | 60 | 90 | 60 | 75 |
| MGP 630 | 623,6 | 95 | 120 | 44 | 64 | 3,3 | 5,6 | 55 | 80 | 60 | 75 |
* Intermitten operation: the permissible values may occur for max. 10% of every minute.
General:| Pressure fluid | Mineral based- HLP(DIN 51524) or HM(ISO 6743/4) | |
| Temperature range, | °C | -40÷140 |
| Optimal Viscosity range, | mm2/s | 20÷75 |
| Filtration | ISO code 20/16 (Min. recommended fluid filtration of 25 micron ) |
