Orbital Motors

Project information

  • Hydraulics Motors: Orbital Motors
  • Model: MGT
  • Product Type: LSHT Medium Duty
  • Product Catalog: Download Catalog

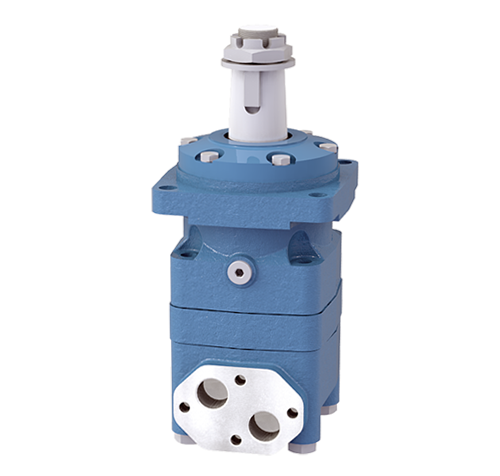

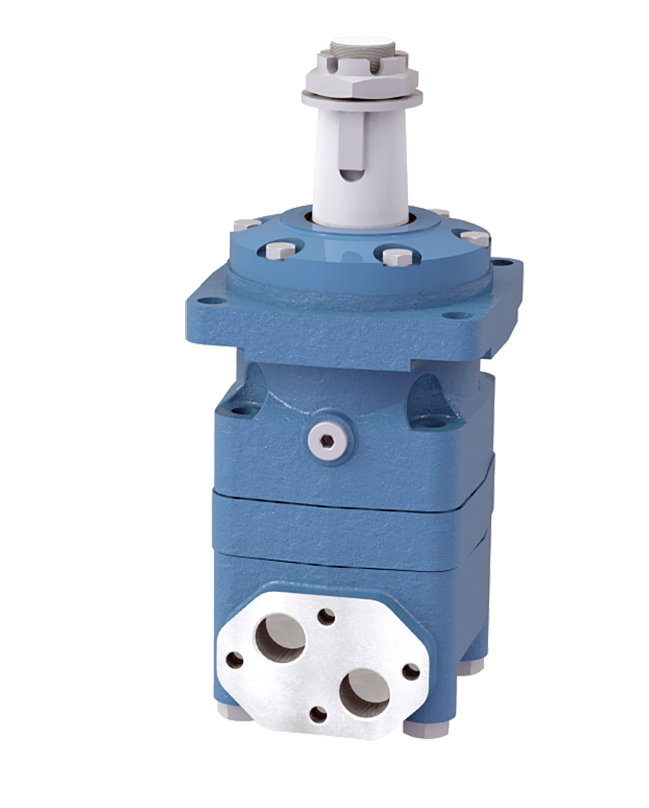

Medium Duty Orbital Motor MGT

Orbit motors convert hydraulic energy (pressure, oil flow) into mechanical energy (torque, speed). Hydraulic orbit motors operate on the principle of an internal gear (rotor) rotating within a fixed external gear (stator). The internal gear transmits the torque generated by the application of pressure from hydraulic oil fed into motor which is then delivered via the motor's output shaft. Orbit motors have high starting torque and constant output torque at wide speed range

  • Application:
    • Conveyors
    Agricultural machines
    Road building machines
    Mining machinery
    Food industries
    Special vehicles
    Plastic abd rubber machinery etc.
  • Option:
    • Model - Disk valve, roll-gerotor
    Flange and wheel mount
    Side and rear ports
    Short motor
    Motor with Drum Brake
    Tacho connection
    Speed sensoring
    Shafts - straight, splined and tappered
    SAE, Metric and BSPP ports
    Other special features
Code

Displacement

[cm3/rev]

Max. speed

[RPM]

Max. Torgue

[daNm]

Max. Output

[kW]

Max. Pressure Drop

[bar]

Max. Oil Flow

[Ipm]
cont. int* cont. int* cont. int* cont. int* cont. int*
MGT 160 161,1 622 775 47 56 26,5 32 200 240 100 125
MGT 200 201,4 620 752 59 71 33,5 40 200 240 125 150
MGT 250 251,8 496 601 73 88 33,5 40 200 240 125 150
MGT 315 326,3 382 461 95 114 33,5 40 200 240 125 150
MGT 400 410,9 304 368 108 126 30 35 180 210 125 150
MGT 500 523,6 238 289 122 137 26,5 30 160 180 125 150
MGT 630 631,2 197 234 130 148 24,3 27,5 140 160 125 150
MGT 725 724,3 172 209 127 147 20,2 26,8 120 140 125 150



* Intermitten operation: the permissible values may occur for max. 10% of every minute.

General:
Pressure fluid   Mineral based- HLP(DIN 51524) or HM(ISO 6743/4)
Temperature range, °C -40÷140
Optimal Viscosity range, mm2/s  20÷75
Filtration   ISO code 20/16 (Min. recommended fluid filtration of 25 micron )
